MAVIS (Micro-surgical Artificial Vascular anastomosIS)

This dataset was presented in the paper: SurgMLLMBench: A Multimodal Large Language Model Benchmark Dataset for Surgical Scene Understanding.

Dataset Overview

MAVIS is a microsurgical dataset comprising 19 videos of artificial vascular anastomosis procedures performed by three expert microsurgeons at College of Medicine, Korea University, Republic of Korea.
For each video frame, it provides:

• Pixel-level segmentation of seven tool categories
• Frame-level workflow annotations: surgical stage, phase, and step

This dataset supports research on surgical tool segmentation and surgical workflow recognition in microsurgical environments.

Data Details

Each directory in the MAVIS dataset stores raw image data, segmentation masks, and annotation files.

• Directory Structure

  MAVIS/
  ├── frames/
  │   ├── CASE01/
  │   │   ├── image_00001.jpg
  │   │   └── ...
  │   ├── ...
  ├── annotations/
  │   ├── long-term.json
  │   ├── short-term.json
  │   ├── segmentations/
  │   │   ├── CASE01/
  │   │   │   ├── image_00001.png
  │   │   │   └── ...
  │   │   ├── ...
  │   └── segmentations_with_keypoint/
  │       ├── CASE01/
  │       │   ├── image_00001.png
  │       │   └── ...
  │       ├── ...
  ├── fig/
  └── README.md


• Annotation Formats

  • short-term.json: polygon mask data for seven tool classes for each frame
  • long-term.json: stage, phase, and step labels for each frame

• Stage–Phase–Step Hierarchy

  The workflow annotations are structured into six Stages, comprising one or more sequential Phases, which in turn consist of multiple sequential Steps.

  Phase Class ID	Stage Name	Stage Class ID	Phase Name	Step Class ID	Step Name
  0	First tying	0	Suturing	0	Needle holding
  1	Second 120° tying	1	Knot tying	1	Needle passing
  2	Second 180° tying	2	Cutting	2	Needle dropping
  3	Front side tying	3	Flip	3	1st knot
  4	Flip			4	2nd knot
  5	Back side tying			5	3rd knot
  				6	Cutting
  				7	Flip clamp

  [Click to expand] Full annotation hierarchy with descriptions

  1. First tying (forming the first knot)
     1. Phase: Suturing – place and position the suture
        • Needle holding: grasp the suture needle securely with the needle holder
        • Needle passing: insert the needle through both edges of the vessel and pull it through
        • Needle dropping: release the needle at the optimal position for tying (≈5 o’clock)
     2. Phase: Knot tying – create the knot
        • 1st knot: wrap the free end of the suture around the instrument and tighten
        • 2nd knot: repeat wrapping in the opposite direction and tighten
        • 3rd knot: final wrap to secure the stitch
     3. Phase: Cutting – trim excess suture
        • Cutting: use scissors to sever both ends of the suture (can cut both at once or sequentially)
  2. Second 120° tying (forming the second knot at a position rotated 120° from the first tying)
     • Subtasks: identical to First tying (Suturing → Knot tying → Cutting)
  3. Second 180° tying (forming the second knot at a position rotated 180° from the first tying)
     • Subtasks: identical to First tying (Suturing → Knot tying → Cutting)
  4. Front side tying (additional knot on the front face between first and second)
     • Subtasks: identical to First tying (Suturing → Knot tying → Cutting)
  5. Flip (reorient vessel for back‐side access)
     • Phase: Flip – flip the vessel clamp
       • Flip clamp: reposition the clamp so that the vessel’s backside faces the camera
  6. Back side tying (forming knots on the backside between first and second)
     • Subtasks: identical to First tying (Suturing → Knot tying → Cutting)

• Tool Segmentation Classes

  The dataset contains the following surgical tool classes:

  Class ID	Class Name	RGB Color
  0	forceps	(253, 0, 26)
  1	scissors	(43, 253, 62)
  2	vascular_clamps	(0, 43, 249)
  3	needle_holder	(255, 253, 66)
  4	vessel	(253, 40, 250)
  5	needle	(38, 255, 254)
  6	thread	(198, 161, 251)

Examples of Labeled Data

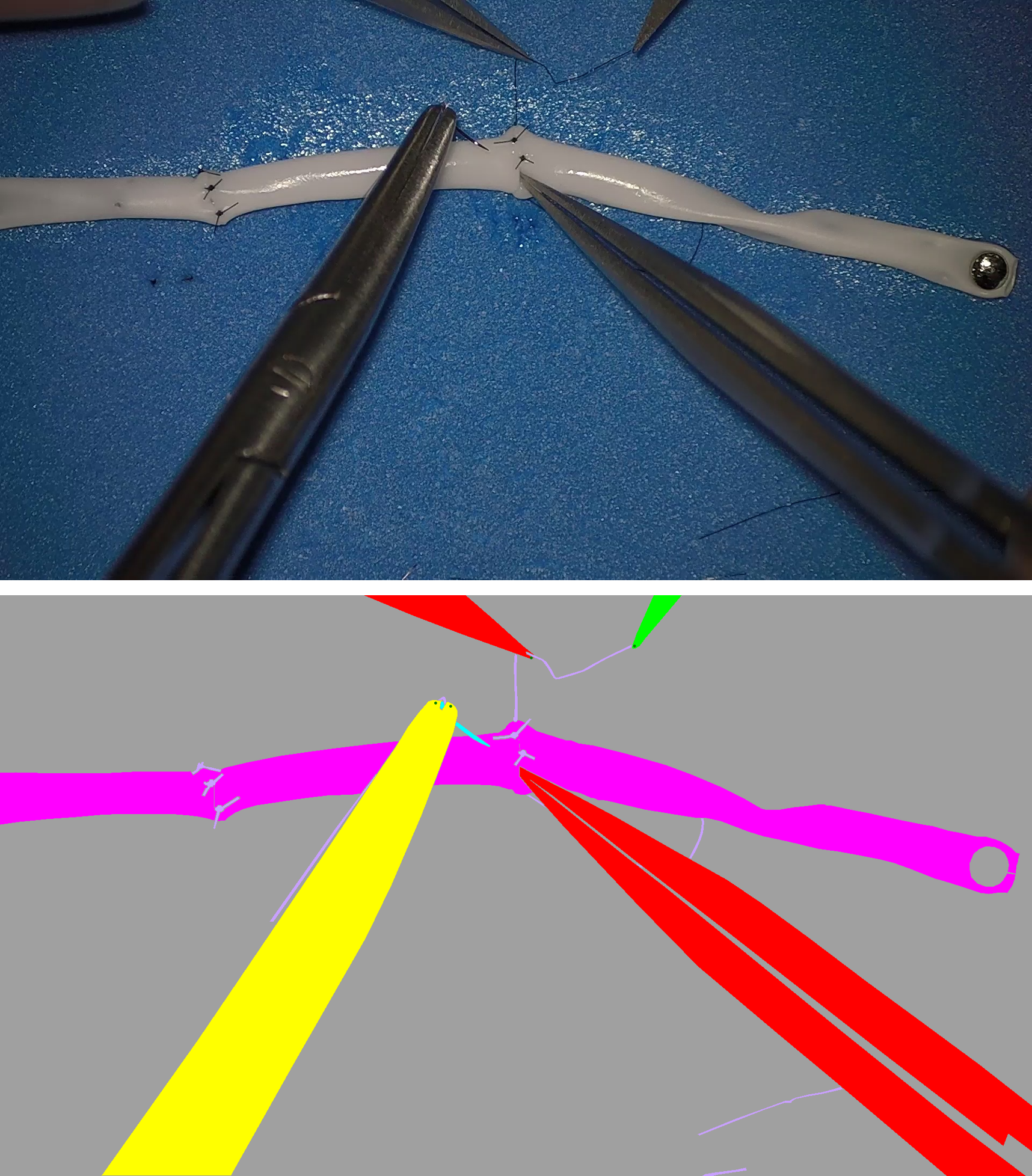

Figures 1, 2, and 3 show examples of the dataset with segmentation labels.

Figure 1	Figure 2	Figure 3

Citation

@misc{choi2025surgmllmbenchmultimodallargelanguage,
      title={SurgMLLMBench: A Multimodal Large Language Model Benchmark Dataset for Surgical Scene Understanding},
      author={Tae-Min Choi and Tae Kyeong Jeong and Garam Kim and Jaemin Lee and Yeongyoon Koh and In Cheul Choi and Jae-Ho Chung and Jong Woong Park and Juyoun Park},
      year={2025},
      eprint={2511.21339},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2511.21339},
}
